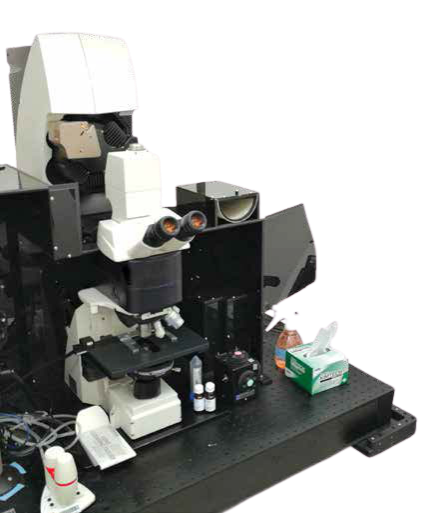

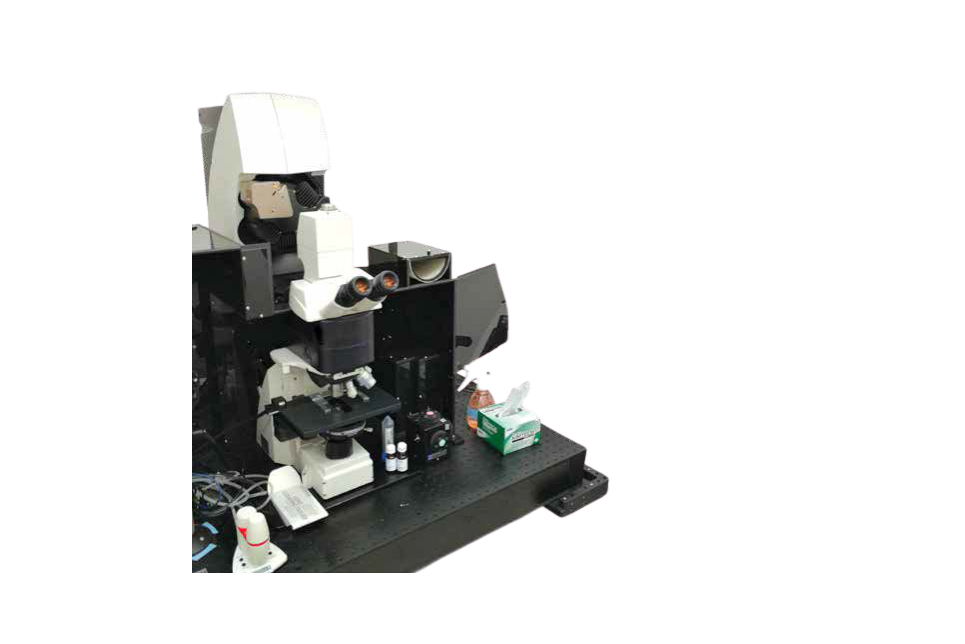

Upright Confocal Microscope - SP8


CSB L12 Support Room 8

Upright fixed-stage fluorescence microscope with micro injection rig, micromanipulator for electrodes

Laser scanning confocal function with 405nm, 488nm, 555nm and 639nm lasers with two-channel MA-PMT and a HyD Detector with transmitted light detector (T-PMT) for brightfield imaging

Objectives: 10x, 20x, 40x oil and 60x oil with high NA

Ceramic dipping extra-long working distance 20x and 40x with interference contrast optics

DAPI, GFP, RFP filter cubes for visualisation

Fluorescence recovery after photo bleaching (FRAP) and fluorescence resonance energy transfer (FRET) modules

Motorised XY-stage to accommodate a variety of dishes and plates as well as microscope slides


LAS-X Control Software

High-sensitive imaging at low-light levels, microinjection, FRAP, FRET

Items User Prices
Upright Confocal Microscope - SP8 Others Rate Others 60/hour
Upright Confocal Microscope - SP8 NTU Rate NTU 50/hour
