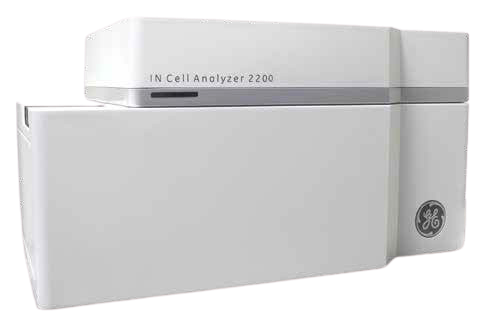

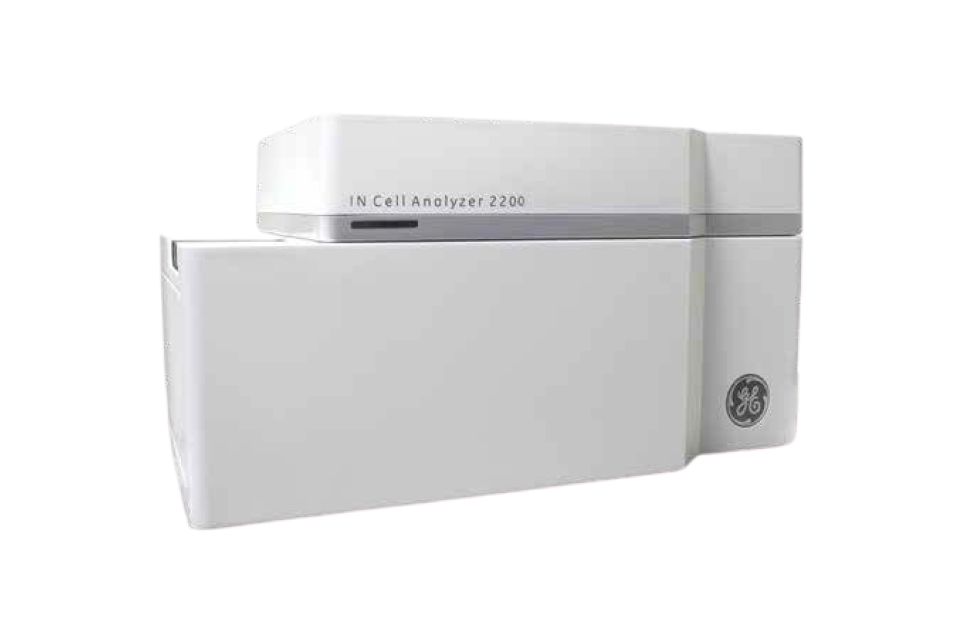

High Content Screening Microscope - IN Cell 2200

High content screening microscope

EMB L7 Imaging room
-

Fast: 2-colour image acquisition from 96-well plate within 3 mins, for example


Seven different but discrete excitation wavelengths cover the entire visible spectrum

Objective lenses: 4x/0.2, 10x/0.45, 20x/0.45 40x/0.95

Sensitive sCMOS camera can detect low-level signal

Image restoration option by 2.5D Deconvolution

Live cell imaging with temperature, CO2 and humidity control

Contrast-enhancing techniques such as DIC and Phase for brightfield imaging

Slide imaging possible

IN Cell Investigator Software for data analysis

Live/fixed cell assay to study cell migration, protein-protein interactions, phenotypic fingerprinting
