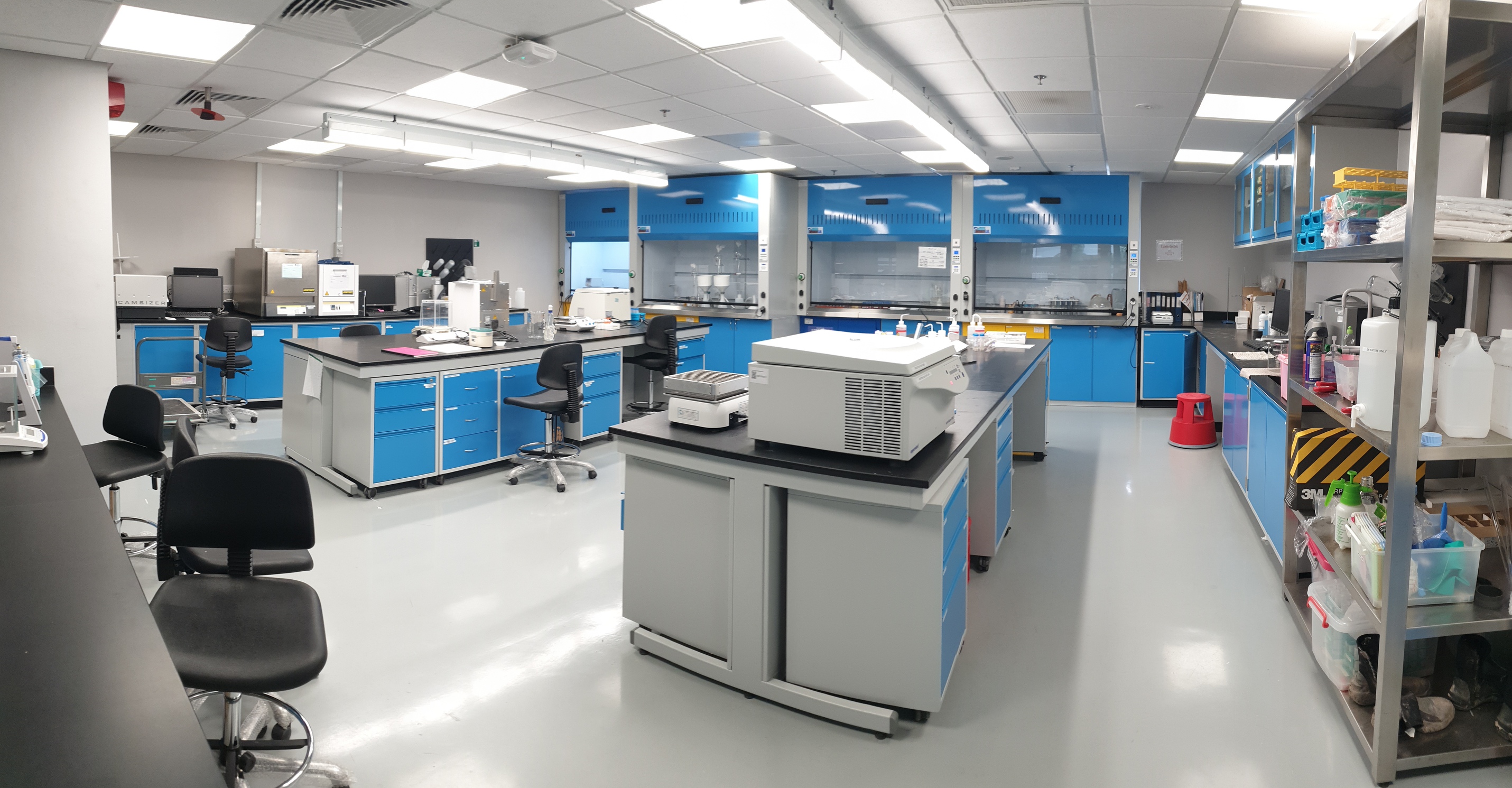

Sediment Main Laboratory

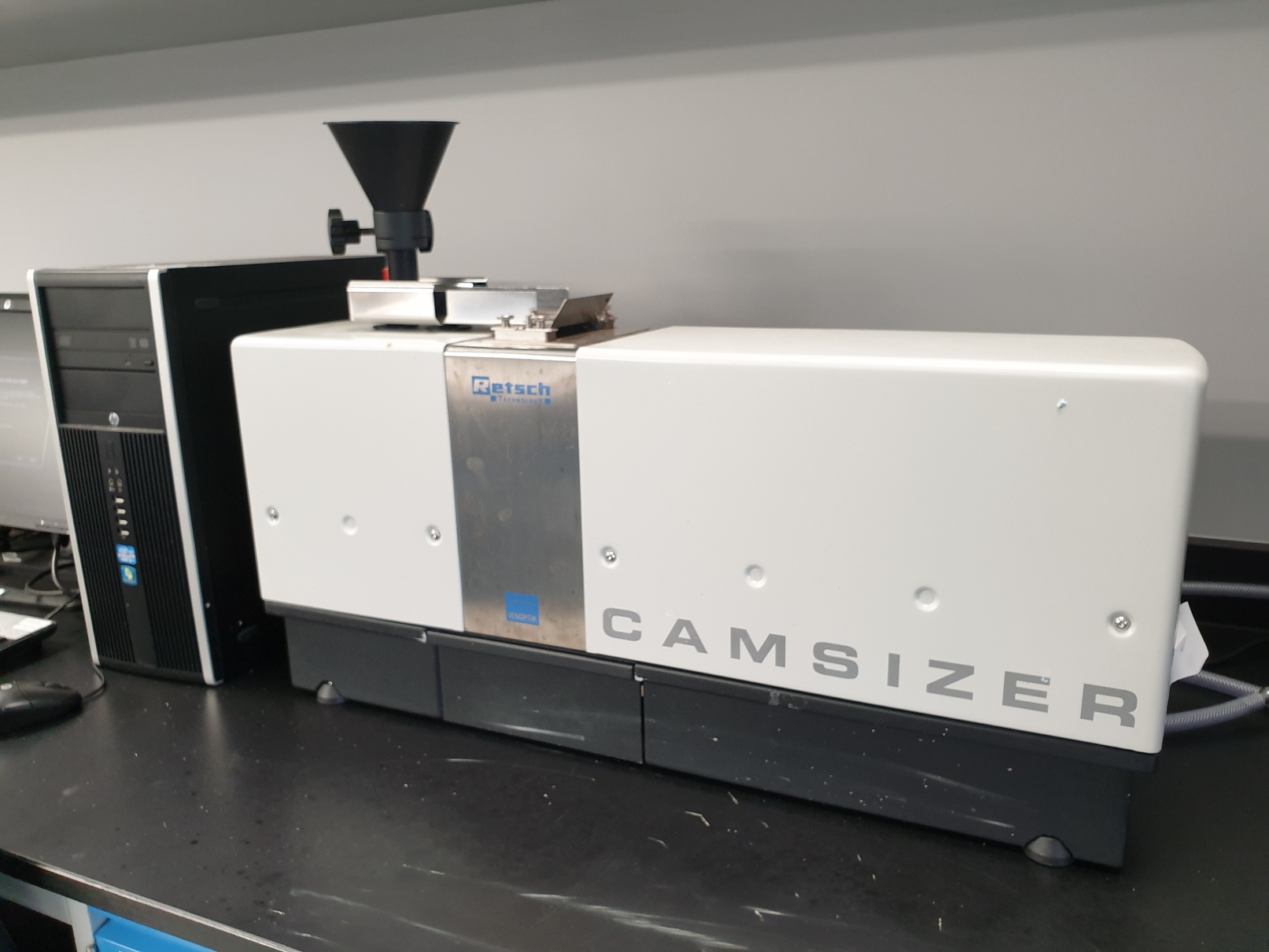

Equipment: Particle Size and Shape Analyzer

Model/Brand: CAMSIZER RETSCH

Specifications

  • Particle size and particle shape analysis from 20 μm to 30 mm
  • Broad dynamic range for measuring wide particle size distributions
  • High resolution for narrow mono-modal or multi-modal distributions
  • 100% detection of oversized grains
  • Outstanding reproducibility
  • Evaluation of 60 images / s in real time

Applications

Analyzes particle size and shape of dry, free flowing bulk materials in a size range from 20 μm to 30 mm

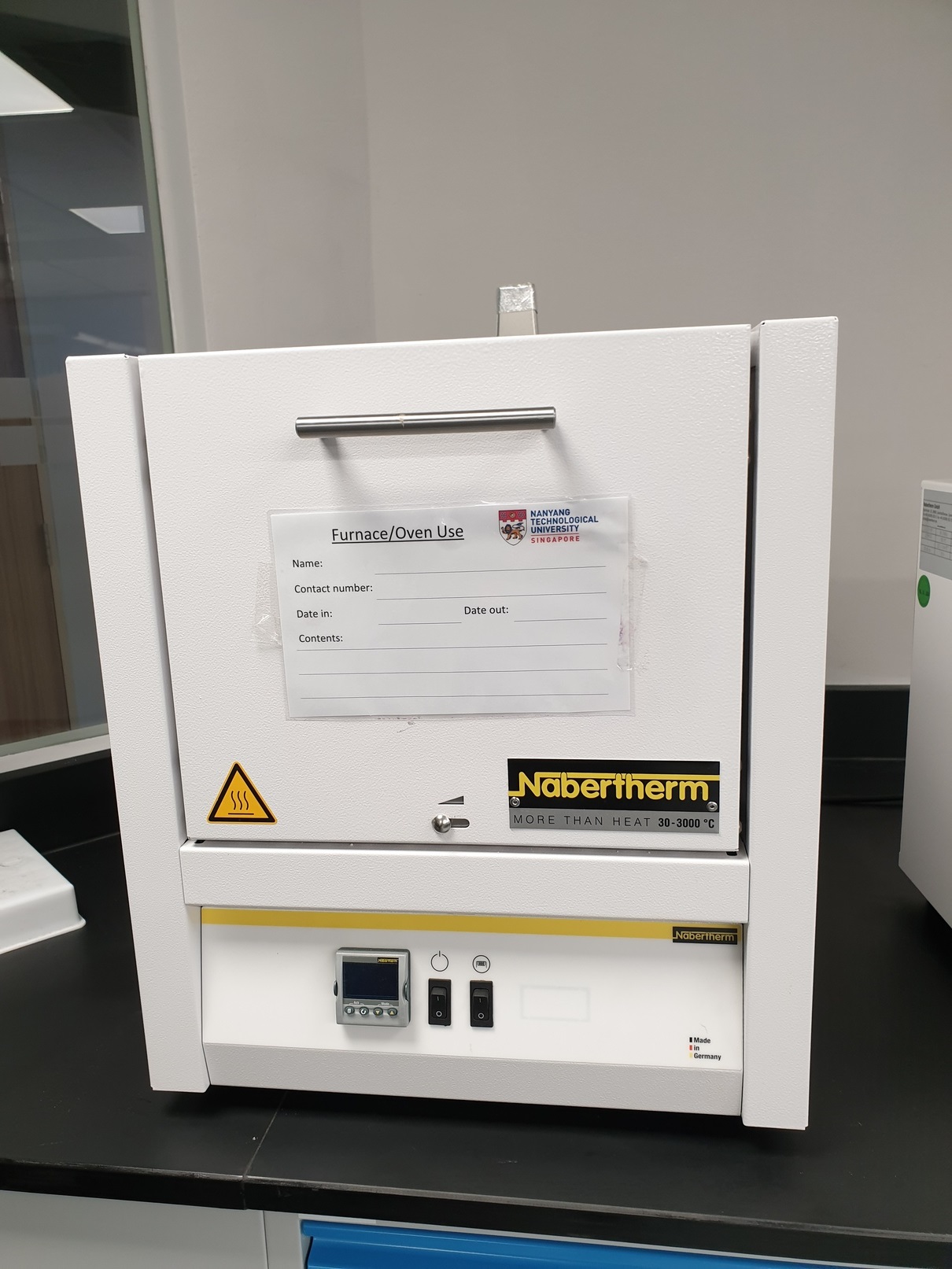

Equipment: Muffle Furnace

Model/Brand: LE 14/11/R7  Nabertherm

Specifications

  • Capacity: 14L
  • Tmax: 1100 °C
  • Working temperature: 1050 °C

Applications

For many applications in the laboratory

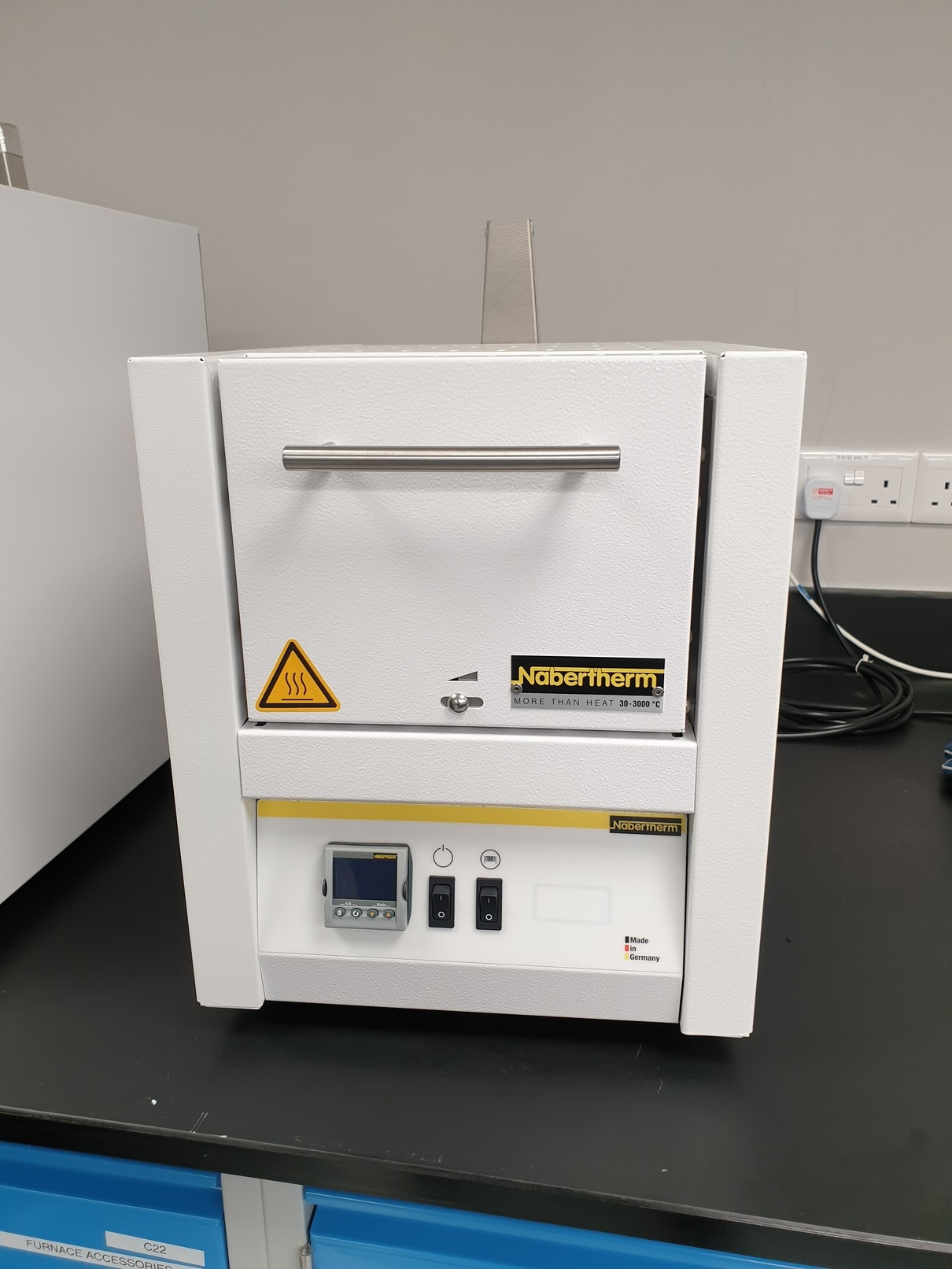

Equipment: Muffle Furnace

Model/Brand: LE 2/11/R7 Nabertherm

Specifications

  • Capacity: 2L
  • Tmax: 1100 °C
  • Working temperature: 1050 °C

Applications

For many applications in the laboratory

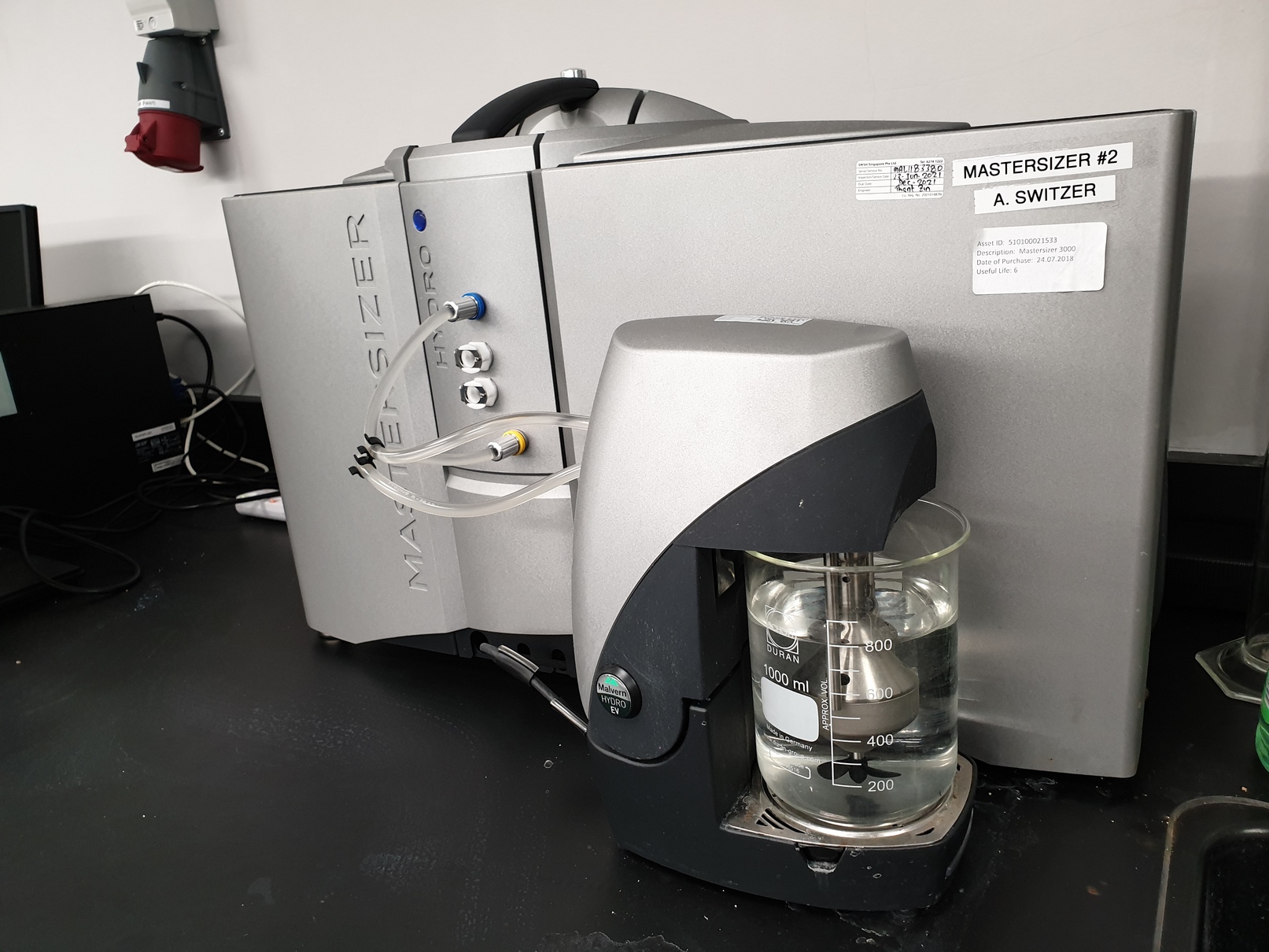

Equipment: Particle Size Analyzer

Model/Brand: Mastersizer 3000  Malvern

Specifications

With the Hydro EV Flexible volume wet dispersion
  • Accuracy: Better than 0.6%
  • Precision / Repeatability: Better than 0.5% variation

  • Reproducibility: Better than 1% variation

Optics
  • Red light source: Max. 4mW He-Ne, 632.8nm
  • Blue light source: Max. 10mW LED, 470nm
  • Effective focal length: 300mm
  • Detector
  • Angular range: 0.015 - 144 degrees

Applications

Uses the technique of laser diffraction to measure the particle size and particle size distribution of materials. It does this by measuring the intensity of light scattered as a laser beam passes through a dispersed particulate sample.

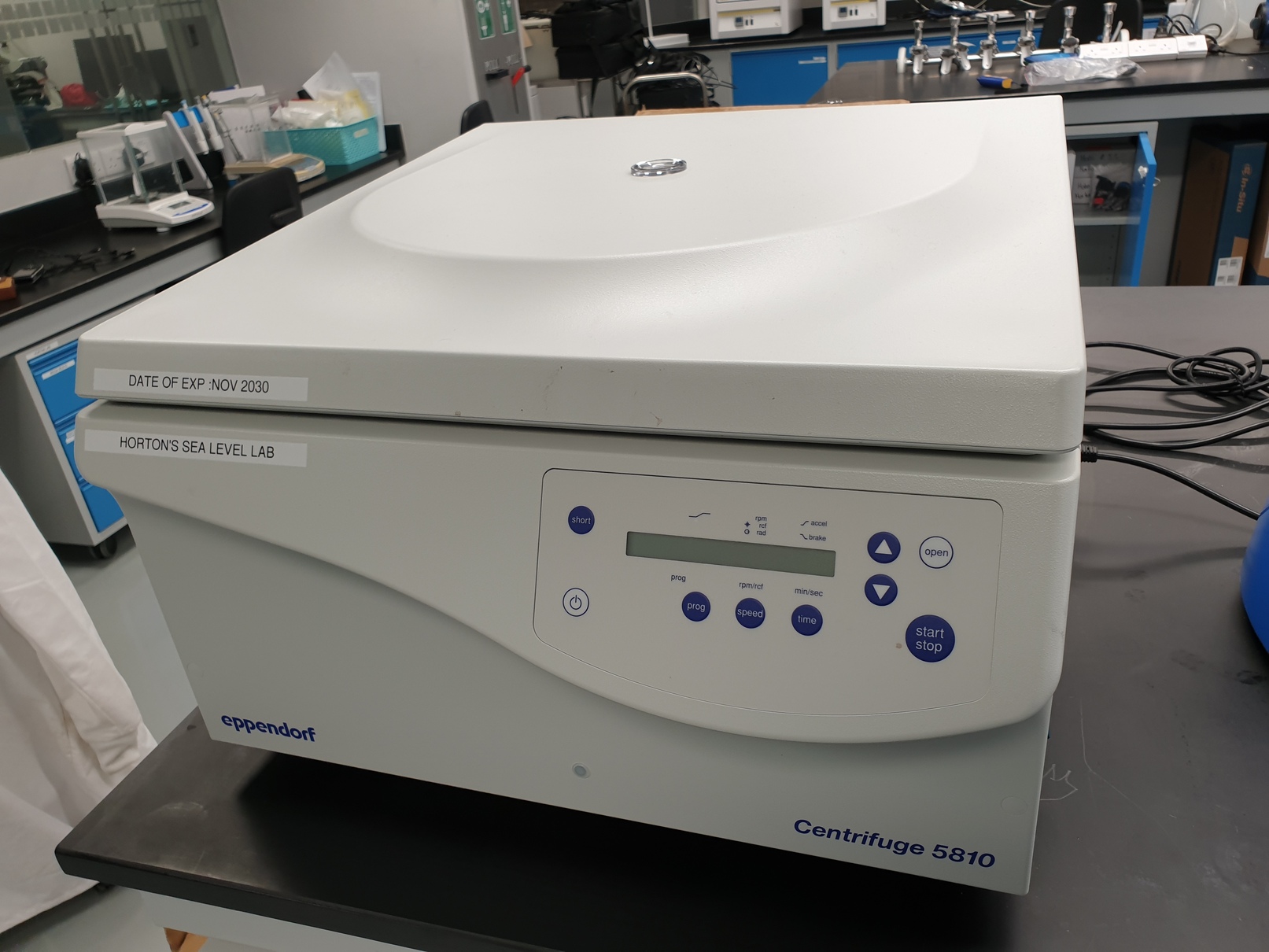

Equipment: Benchtop Centrifuge

Model/Brand: 5810 Eppendorf

Specifications

  • Max. capacity: 4×750 ml
  • Max. speed (min-1): 14000
  • Temperature (°C): –9...+40 °C
  • Acceleration/braking ramps: 10/10
  • Programs: 35
  • Timer: 1 - 99 min, with continuous mode, short spin

Applications

For separating liquid substance mixtures with different densities





Equipment: Sieve Shaker

Model/Brand: Analysette 3 SPARTAN PULVERISETTE 0

Specifications

  • Maximum feed size < 5 mm
  • Feed quantity 0.1 to 10 ml
  • Final fineness 5 to 10 micron

Applications

Simple Sieving for all tasks.
The little sister of the ANALYSETTE 3 PRO for all typical sieving tasks in the laboratory with optical adjustment of the amplitude on the running instrument. Complete with the practical FRITSCH sieve stack tensioning system EASYTWIST and the possibility of automatic evaluation of the sieve analysis using the extensive FRITSCH evaluation software AUTOSIEVE.
The ANALYSETTE 3 SPARTAN is also suitable for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves.
It is convertible into a micro mill for fine comminution of dry laboratory samples or solids in suspensions and for homogenisation of emulsions or pastes.

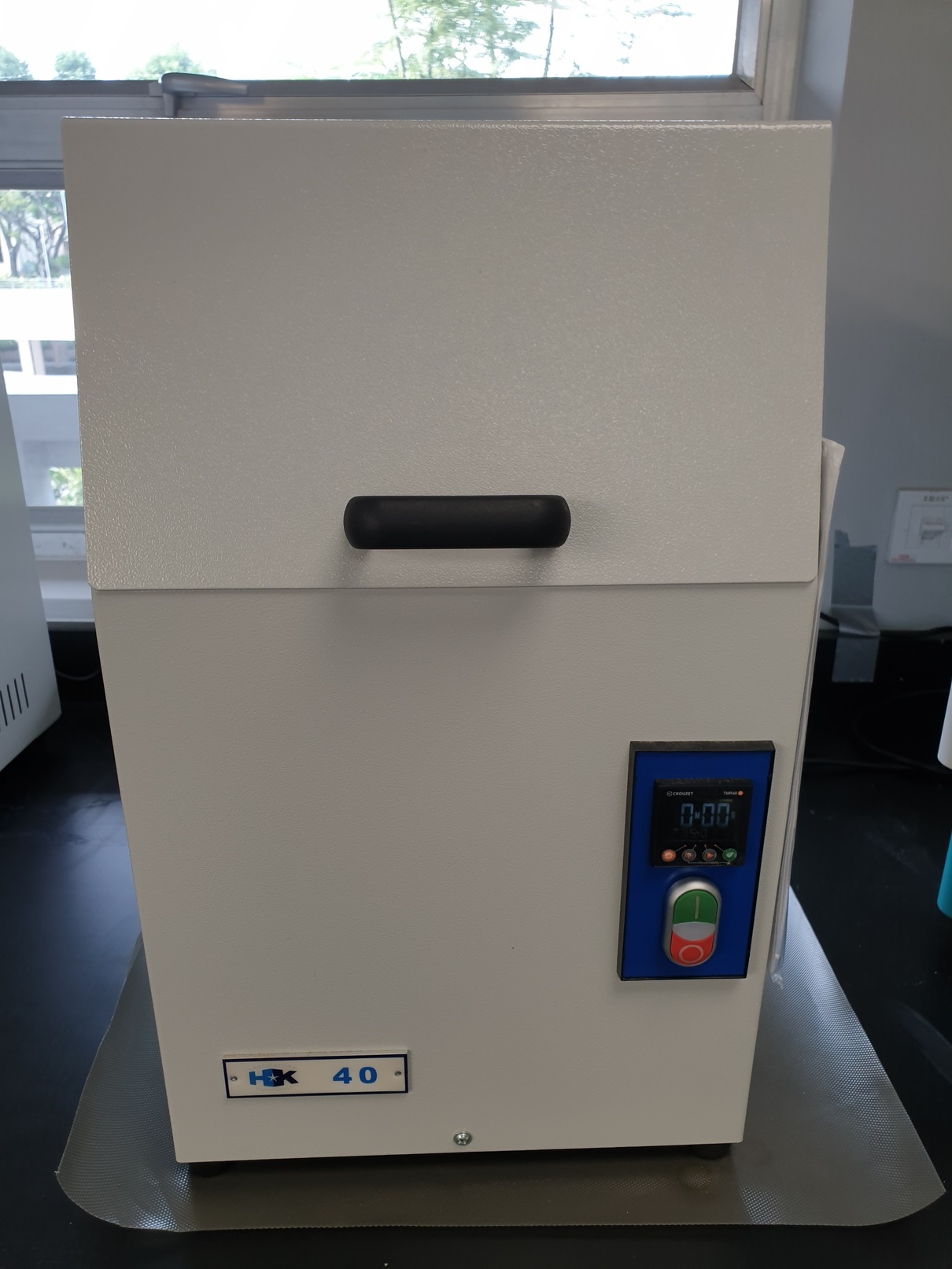

Equipment: Swing Mill

Model/Brand: HK40 HK LAB

Specifications

Time setting: Max.10 min, var. 1 sec steps

Applications

For the preparation of laboratory samples for analytical chemistry, X-ray and spectral analysis, electron microscopy, mineralogy, microbiology and for many further relative scientific disciplines
