Petrophysical and Textural Analysis Laboratory

The main research interests are magmatic processes occurring just prior to and during an eruption. With a focus on magma storage conditions and eruption mechanisms, with a particular interest in identifying processes responsible for changes in eruptive behavior.

The lab serves for sample preparation for Petrophysical and Textural Analysis and the study of porosity and grain size.

The main applications are the study of natural reservoirs for hydrocarbon, water resources and mining industry.

Equipment: Particle Size Analyzer

Model/Brand: 1190 CILAS

Specifications

Sample Viewing:

  • Size range (µm): 0.04 - 2,500
  • Repeatability: ± 0.5 %
  • Reproducibility: < 2 %
  • Temperature: + 10 to + 40° C
  • Humidity: 0 to 90 %
  • Laser source
  • Wavelength: 635 and 830 nm
  • Power: 3 / 7 mW
  • Beam Diameter: 2 and 20 mm

Applications

Sets the standard for particle characterization and allows the highest level of accuracy and precision for the entire measurement range between 0.04 and 2,500 microns.

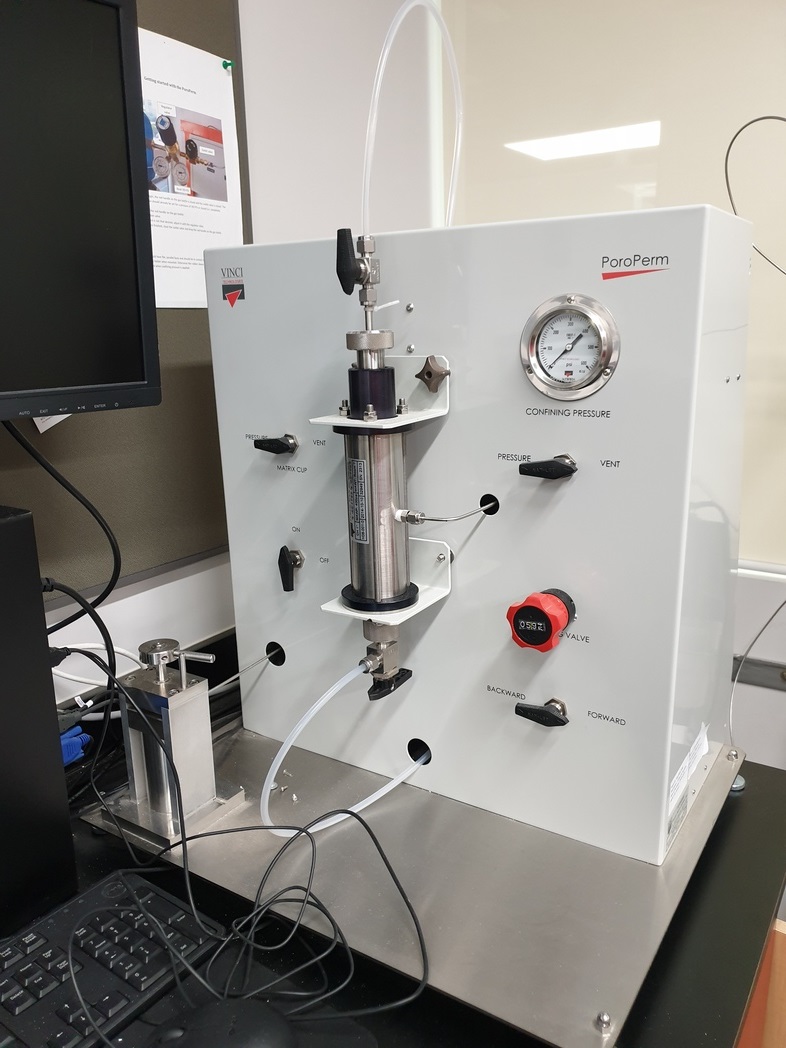

Equipment: Steady state gas permeameter and porosimeter

Model/Brand: PoroPerm Prod 3 Vinci Technologies

Specifications

  • Permeability: Range: 0.01md to 10 darcies
  • Flow Pressure: 0 - 150 psi
  • Confining Pressure: 0 - 400 psi (option 10,000 psi)
  • Gas flow: 0-50 and 0-600 cc/min
  • Temperature: Ambient Pressure transducer accuracy: 0.1% F.S.
  • Flow accuracy: 1 % F.S

Applications

Determines both porosity and permeability to gas of plug-sized core samples

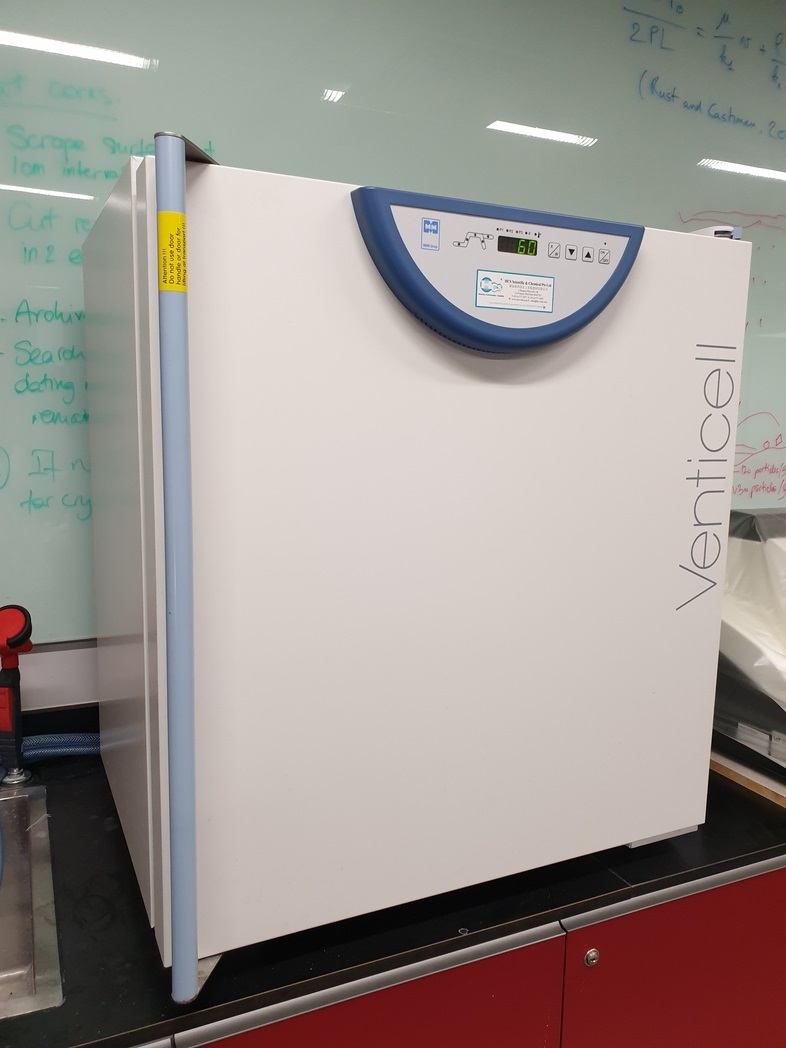

Equipment: Drying Oven with Air Circulation

Model/Brand: Venticell

Specifications

Working temperature: 10°C above ambient temperature up to 250°C/300°C



Applications

Chamber is ventilated in a regular spiral way, which is suitable for very moist goods.

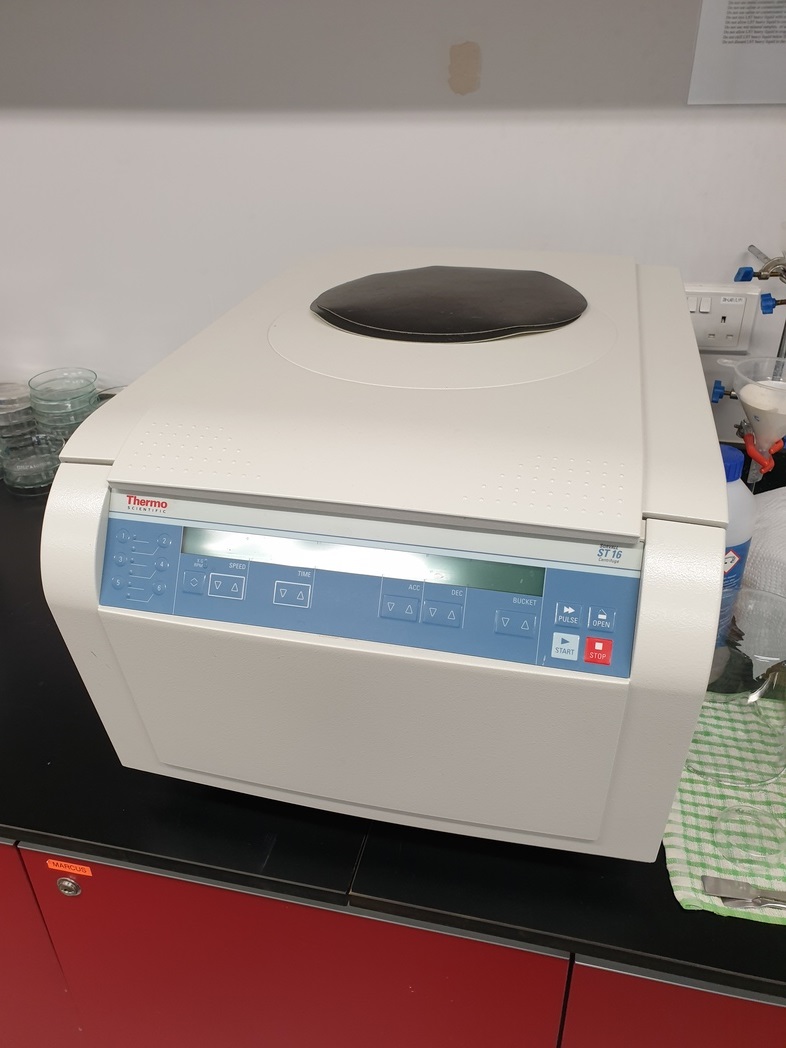

Equipment: Centrifuge

Model/Brand: Sorvall ST16 ThermoFisher

Specifications

Sample Viewing:

  • Rotor: TX-400
  • Type: Ventilated Centrifuge
  • Capacity: 4 x 400 mL
  • Max. Speed: 15,200 rpm
  • Program Storage: 6 programs, direct access
  • Run Time: 9 hr. 99 min. plus HOLD



Applications

Perform cryptotephra separation and sediment preparation

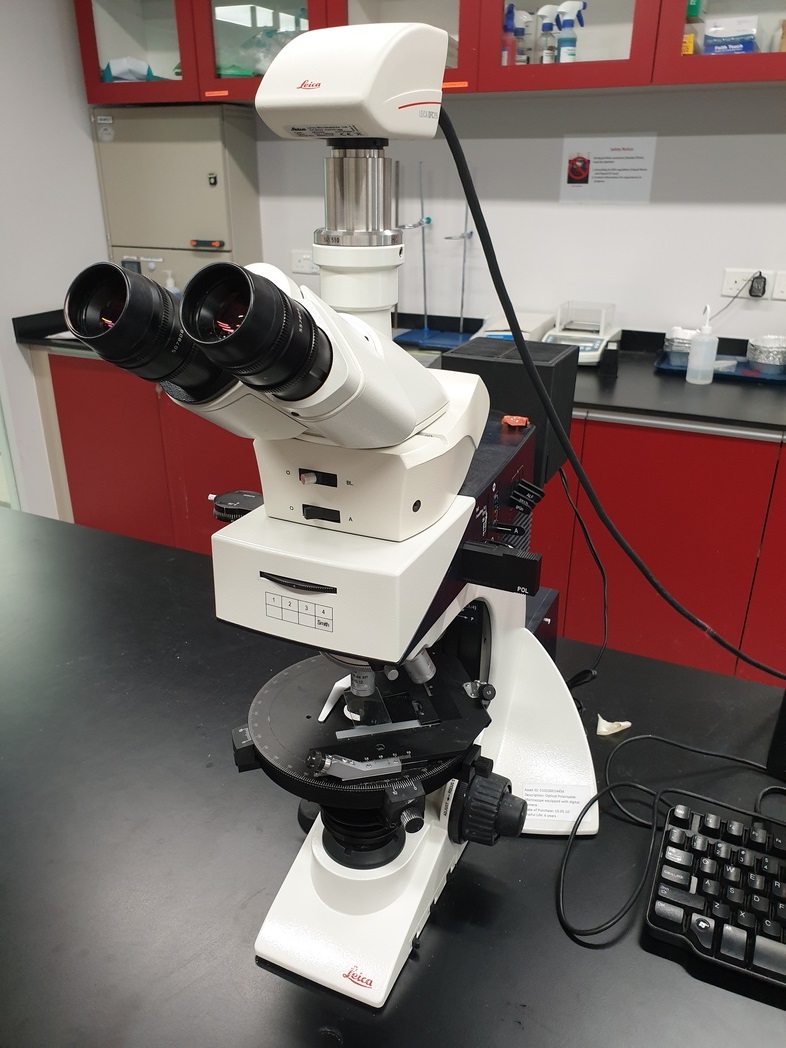

Equipment: Microscope

Model/Brand: DM2500 P LEICA

Specifications

  • Objective turret: 5x (M25), centerable
  • Transmitted light: Polarization contrast, Orthoscopy, Conoscopy, Brightfield,Phase contrast, DIC, Darkfield
  • Incident light: Polarization contrast and Brightfield

Applications

For all routine polarizing examinations in petrography, mineralogy and structure characterization.
