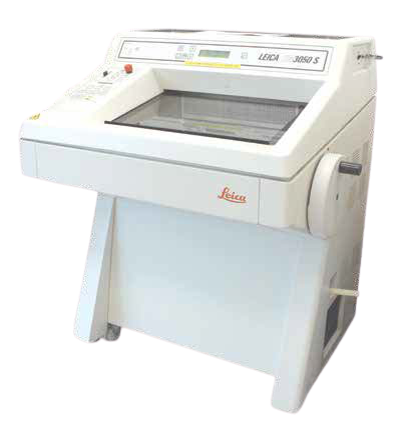

LEICA CM3050S
CRYO-SECTIONING For further enquiries, please contact Ms Winnie Tay at winnietayyl@ntu.edu.sg for users at the Clinical Sciences Building or Ms Dee Dee Toh at deedeetoh@ntu.edu.sg for users at Experimental Medicine Building.
Processing multiple specimen and performing serial cuts can result in high section numbers. The Leica CM3050 S cryostat is designed to help with exactly these time-consuming jobs.
The low working height and available knee space of the Leica CM3050 S cryostat allow the user to work comfortably while sitting. Motorized drive and section counter improve productivity for multiple serial sections.
Particularly when working with delicate specimens, e.g. brain samples, the precise specimen orientation and the specimen feed system provide for reproducible sections.
| Maximum specimen size: | 40 x 55 mm |
| Cutting speed: | 0.1 mm/s to 170 mm/s 0.1 mm/s to 100 mm/s Vmax: 210 mm/s |
| Section thickness setting | 0.5 to 300 μm |
| Maximum specimen size | 40 mm x 55 mm |
| Horizontal specimen feed | 25 mm |
| Vertical specimen stroke | 59 mm |
| Specimen retraction | 50 pm |
| Specimen precision orientation | by 8° (x/y/z axis) |
| Trimming | 5 to 150 μm ± 0,5 μm in steps of 5, 10, 30, 50, 100 and 150 μm |
| Motorized coarse feed at two speeds | 500 μm/s and 1,000 μm/s |
| Cutting speed ranges | 0.1 mm/s to 170 mm/s, 0.1 mm/s to 100 mm/s, Vmax 210 mm/s |
| Items | User | Prices |
|---|---|---|
| LEICA CM3050S OTHERS RATE | Others | 15/Hour |
| LEICA CM3050S NTU RATE | NTU | 10/Hour |
