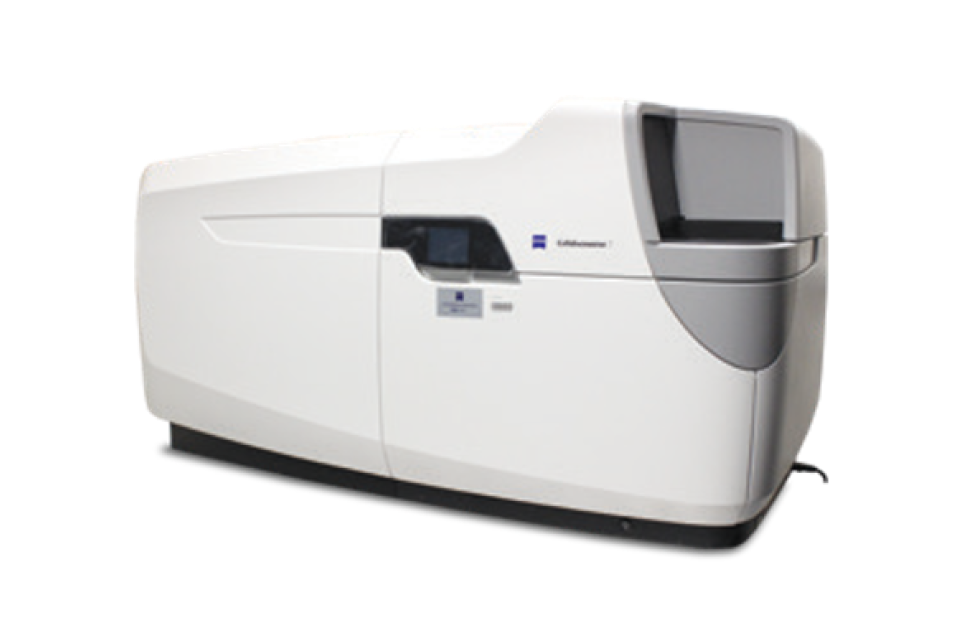

Inverted Fluorescence Live Cell Microscope in a closed-box - CD7

INVERTED FLUORESCENCE LIVE CELL MICROSCOPE IN A CLOSED-BOX

EMB L7 Imaging Room
-

Fully motorised widefield fluorescence microscope with incubator and hardware autofocus for live cell imaging

Air- and water-lens with in-built optovar that can change magnification and numerical aperture

Available magnification from 10x to 100x, and numerical aperture (NA) from 0.35 to 1.2

Automated water dispensing and draining mechanism for the water-lens

A high-sensitive sCMOS camera for fluorescence imaging with a maximum frame rate of 100 and an additional higher-resolution monochrome camera

Seven excitation wavelengths (LED) and multi-band filter sets that cover the visible spectrum

Zen software for image acquisition and 3D image reconstruction/analysis



Imaging live cells, fixed cells, zebra fish embryo in different types of sample carrier; long-term time-lapse imaging

Items User Prices
Inverted Fluorescence Live Cell Microscope in a closed-box - CD7 Others Rate Others 30/hour
Inverted Fluorescence Live Cell Microscope in a closed-box - CD7 NTU Rate NTU 20/hour
