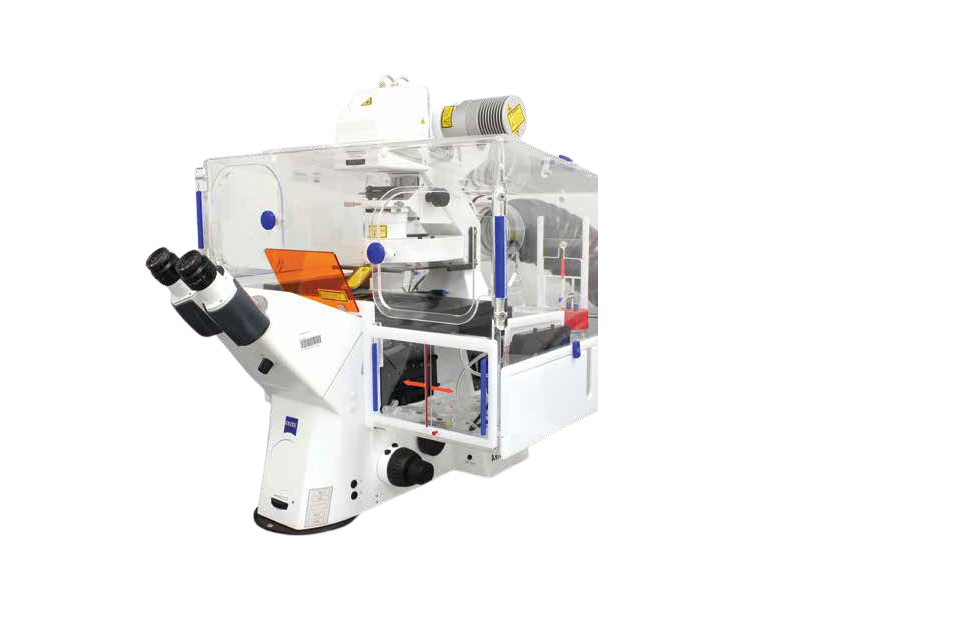

Inverted Confocal Airyscan Microscope with live cell imaging capability – LSM800

INVERTED CONFOCAL AIRYSCAN MICROSCOPE WITH LIVE CELL IMAGING CAPABILITY

CSB L11 Support Room 9

-

• Inverted confocal with 405nm (DAPI), 488nm (FITC), 561nm (rhodamine) and 640nm (Cy5) laser lines

• Objectives: 10x/0.45 Plan Apochromat, 20x/0.8 Plan Apochromat, 20x/0.4 Plan Neofluor Corr, 40x/0.6 Plan Neofluor Corr, 40x/1.3 oil DIC Plan Apochromat and 63x/1.4 oil DIC Plan Apochromat Airyscan, 63x/1.3 W DIC C-Apochromat Corr Airyscan and multi-immersion objectives lenses, accessories for DIC imaging

• Motorised stage, Z-drive, filter turret, nosepiece

• Two high-sensitive GaAsP-PMT detectors and an additional Airyscan detector (GaAsP) array for Airyscan

• Box-type incubation chamber with CO2 flow and temperature control and hardware autofocus for live cell imaging

• Zen software for image acquisition, Airyscan processing and simple image analysis

More suitable for live cells. Fixed cells and tissue sections can also be imaged. XYZλ-t, tile and multi-position imaging. Improved resolution with Airyscan
