Spectrometry

The following instruments are housed in N1.2 and N1.3.

Contact Information

Usage of the facility is handled through the Central Equipment Booking System.

For inquiries about specific instruments, please contact the following staff:

InVia Raman / Chirascan CD / QM8075-21 Fluorescence / iS50 FTIRDr WANG Xiujuan
Phone: (65) 6790-6495
Email: [email protected]
Shimadzu UV2450Dr YU Shucong / Ms Heng Kim Ying
Phone: (65) 6790-4064 / 6316-2985
Email: [email protected]  / [email protected]
Agilent 5800 ICP-OES Ms Octavia
Phone: (65) 6592-3179
Email: [email protected]
Spectramax M5 Dr YU Shucong
Phone: (65) 6790-4064
Email: [email protected]

Equipment List

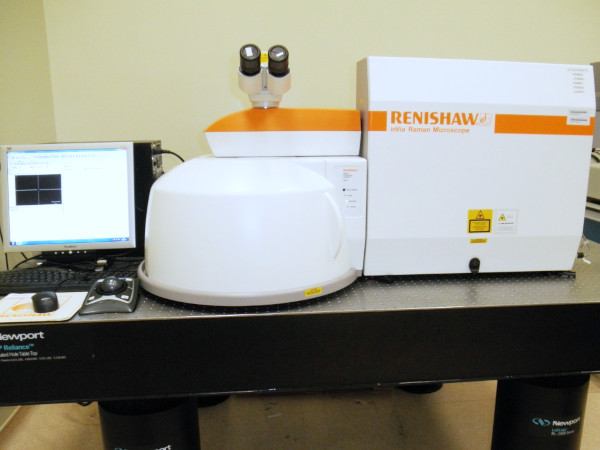

Renishaw InVia Reflex Raman Spectrometer

  • 514 nm, 633 nm and 785 nm excitation sources
  • Class 3B enclosure
  • DM 2500 Leica Microscope with 5X, 20X, 50X and long working distance 50X objectives, and Blue Fox Video Camera
  • Motorized XYZ stage, with travel range X > 100 mm, Y > 70 mm
  • Gratings: 1800 lines mm-1 and 1200 lines mm-1, with spectra repeatability ≤ 0.2 cm-1 and stability 0.05 cm-1 when grating is static.
  • Spatial resolution of 1-2 μm depending on laser wavelength
  • High resolution < 2 cm-1 and wide spectral range (100 cm-1 to 4000 cm-1)

Location: N1.2-B3-08

RenishawInViaReflex

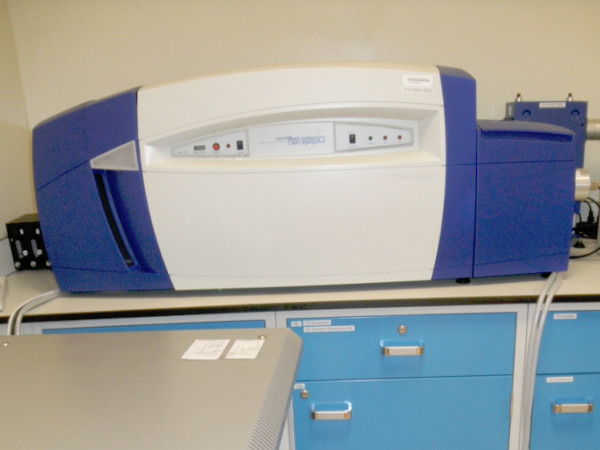

Chirascan CD Spectrometer

  • Pure linearly polarized monochromatic light and high spectral bandwidths in the far-UV
  • Wavelength range 165 – 900 nm
  • Rapid nitrogen purge design to allow far-UV light transmission and prevent the formation of ozone
  • Light source: 150W Xenon arc with rear reflector and optimized ellipsoidal focusing mirror
  • Maximize light throughput without compromising focusing performance

Location: N1.2-B3-06

Chirascan

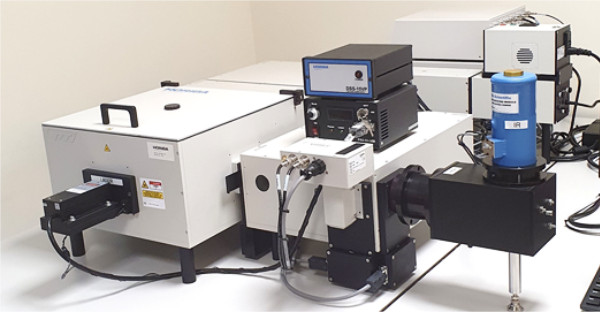

Horiba QM8075-21 Fluorescence Spectrometer

  • FelixGX software for fully automated hardware and data acquisition
  • Steady state and time-resolved experiments
  • Xeon lamp and 980nm laser light sources
  • Dual entrance and dual exit monochromators for added flexibility
  • Double additive excitation and single emission coma aberration corrected, 300 mm focal length monochromators
  • Triple grating turret for extended wavelength selection
  • PMT914D visible detector and IR detector

Location: N1.2-B3-08

ProdigyICP

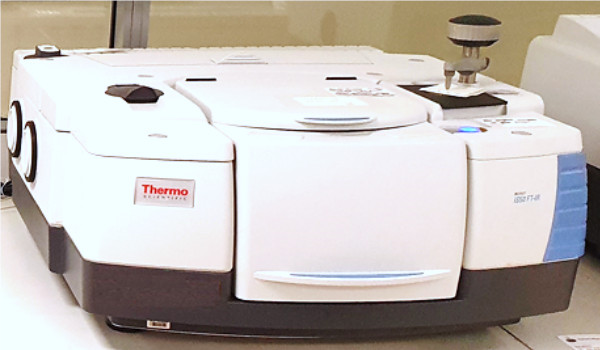

Nicolet iS50 FTIR Spectrometer

  • Mid-IR source
  • Built-in ATR
  • DLaTGS detectors
  • KBr windows for sample compartment
  • Wavenumber range of 400–7000 cm-1

Location: N1.2-B3-06

PerkinElmerLS55

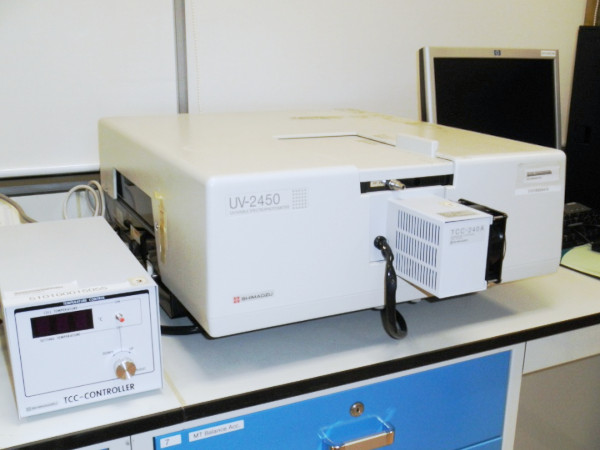

Shimadzu UV 2450 Spectrometer

  • Source: halogen lamp and deuterium lamp, with built-in auto position adjustment
  • Wavelength 200-900 nm
  • TCC-240A thermoelectrically temperature controlled cell holder
  • Temperature control range: 7 to 60 °C

Location: N1.2-B3-06 / N1.3-B4-21

ShimadzuUV2450

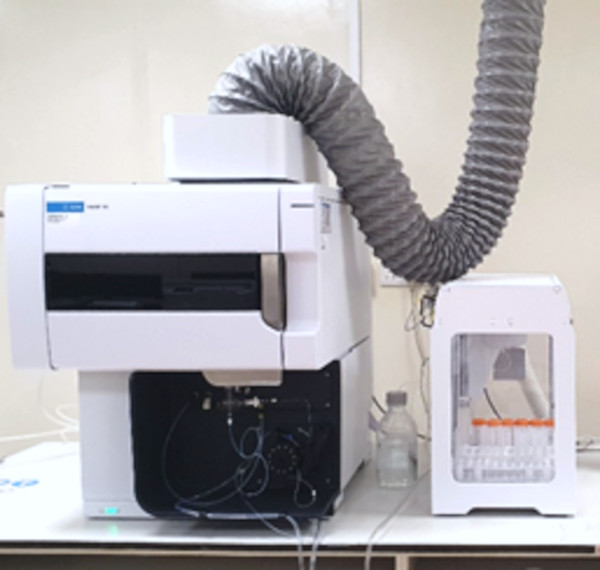

Agilent 5800 ICP-OES

  • With Autosampler
  • For measuring wavelengths > 189 nm
  • Sample volume: minimum 5 mL
  • Full wavelength range analysis by IntelliQuant
  • Measure trace elements and major sample constituents (radial, axial or dual view) at the same time.

Location: N1.2-01-03

PerkinElmerSpectrumOne

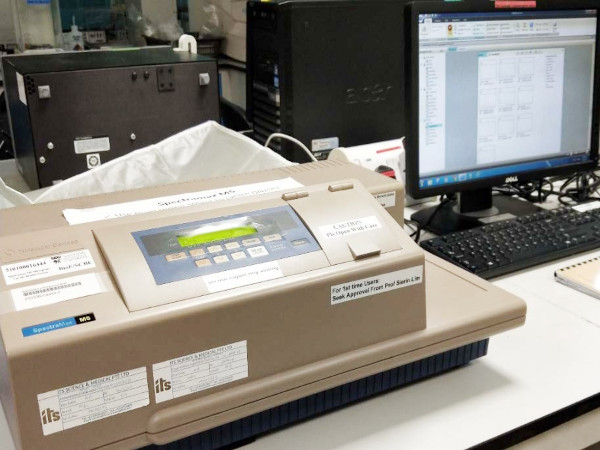

SpectraMax M5 Multi-Mode Microplate Reader

  • Able to measure absorbance (UV-Vis), fluorescence intensity (FI), fluorescence polarization (FP), time-resolved fluorescence (TRF), and luminescence (Lum)
  • Cuvette port and 6 - 384 microplate reading capability
  • Wavelength range 200 - 1000 nm
  • Dual monochromators for assay flexibility
  • Comprehensive data analysis software

Location: N1.3-B3-22

SpectraMaxM5
