Nanyang Venture VII
Objectives
The aim of this project is to encourage students with a keen interest in vehicles or electro-mobility to develop a deeper understanding in their respective area of expertise as well as apply engineering knowledge from their university studies into the
development of the project.
This battery powered vehicle is built specifically for highly urbanised countries such as Singapore. It can accommodate four adults comfortably and still have adequate boot space for any shopping trips. The completed

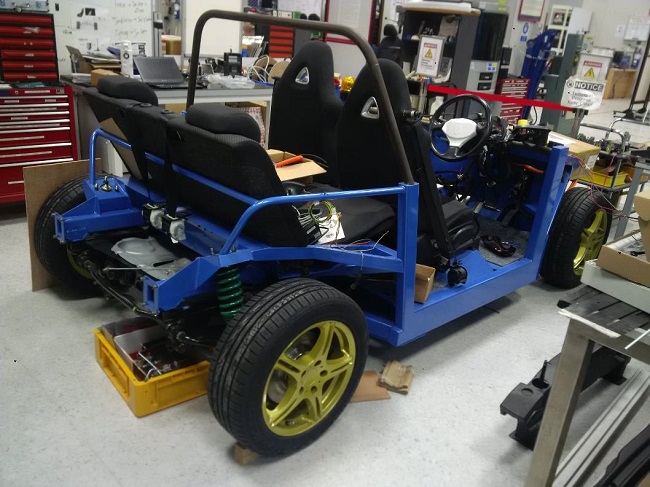

vehicle will serve as a test-bed for future alternative energy sources such as fuel-cells or new battery technology. The project is on schedule to produce a drivable bare-frame vehicle by September 2014.
The research project is supervised
by and it is funded by the Energy Research Institute @ NTU (ERI@N). This project is into its 3rd year with Mechanical and Electrical Engineering students undertaking this project as their Final Year Project (FYP). They are involved in various areas
of development such as chassis, vehicle dynamics, drive train, low and high voltage systems, energy storage systems, ergonomics and wireless power charging.
Car Specifications
Dimensions and Weight | |
Length | 3650 mm |
Width | 1750 mm |
Height | 1450 mm |
Ground Clearance | 150 mm |
Curb weight | 1000 kg |
Performance | |
Top speed | 110 km/h |
Acceleration (0-100 km/h) | 16 seconds |
Cruising range | 60 km |
Output power | 24 kW |
Drivetrain System | |
Motor type | Brushed DC motor series wound |
Battery type | Lithium-iron phosphate/Lithium-ion |
Gearbox | Direct-drive |
Drive wheels | Rear |
Packaging | |
Doors | 3 |
Seats | 2 + 2 |
Wheels, Brakes and Steering | |
Front brakes | Disc |
Rear brakes | Disc |
Wheel base | 2400 mm |
Rims size – front | 16” |
Rims size – rear | 16” |
Tire size – front | 205/45 r16 |
Tire size – rear | 205/45 r16 |
Front suspension | Double wishbone |
Rear suspension | Double wishbone |
Steering type | Rack and pinion (Electronically-assisted) |
Team Members
Mentor
Assoc Professor Ng Heong Wah Division of Engineering Mechanics School of Mechanical and Aerospace Engineering |
Team - From Left to Right : Chua Bee Em, Low Boon Hwee Alex,
Muhammad Redzuan Bin Sulaiman, Mohamed Syarif Bin Mohamed Ruslan Hadi,
Mohamad Arfian Maricar Bin Mohamed Yusof(behind), Muhammad Hafiz Bin Sazali (in front),
Shaman Suresh, Babu
Keval Vipul, Abdul Hafiz Bin Ali Banama
