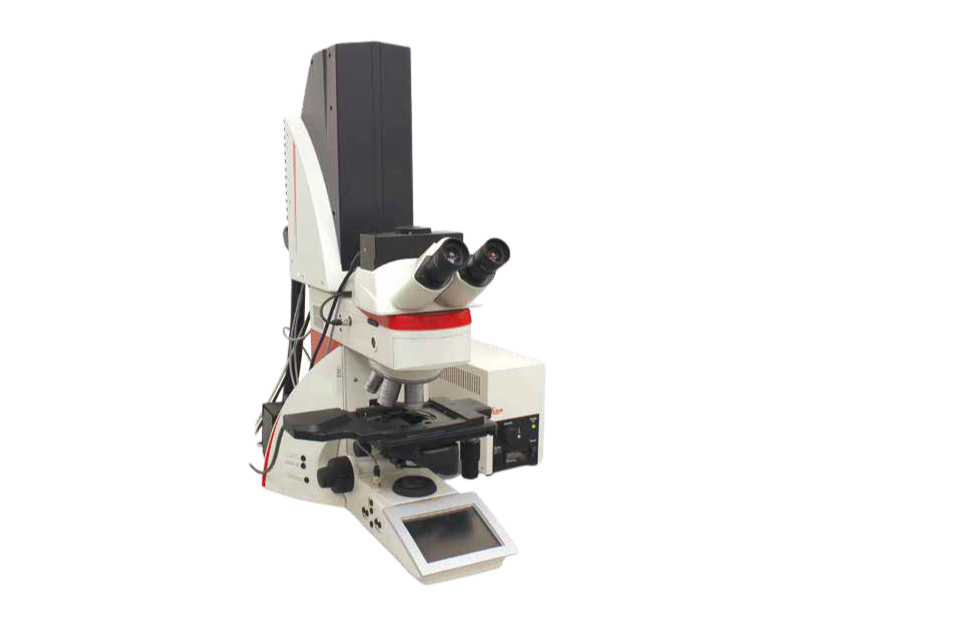

Upright Confocal Microscope - SPE
UPRIGHT CONFOCAL MICROSCOPE
CSB L12 Support Room 7
-
Upright microscope with motorised fluorescent filter turret, Z-drive and condenser
• Objectives: Plan Apo objectives 10x air, 40x oil and 60x oil
• DAPI, GFP, RFP filter cubes for Visualisation
• 405nm, 488nm, 561nm and 635nm Laser lines for scanning
• A spectral detector with one photomultiplier tube (PMT)
• XYZ–imaging
• LAS-X Control Software
• 3D visualisation module with the following features: volume rendering, max projection, depth coding, shadow projection, multi-channel clipping tool and movie editor and 3D output to a stereo monitor.
Suitable for immunohistochemistry imaging of fixed cells/tissue sections
Items | User | Prices |
---|---|---|
Upright Confocal Microscope - SPE Others Rate | Others | 20 |
Upright Confocal Microscope - SPE NTU Rate | NTU | 15/hour |
