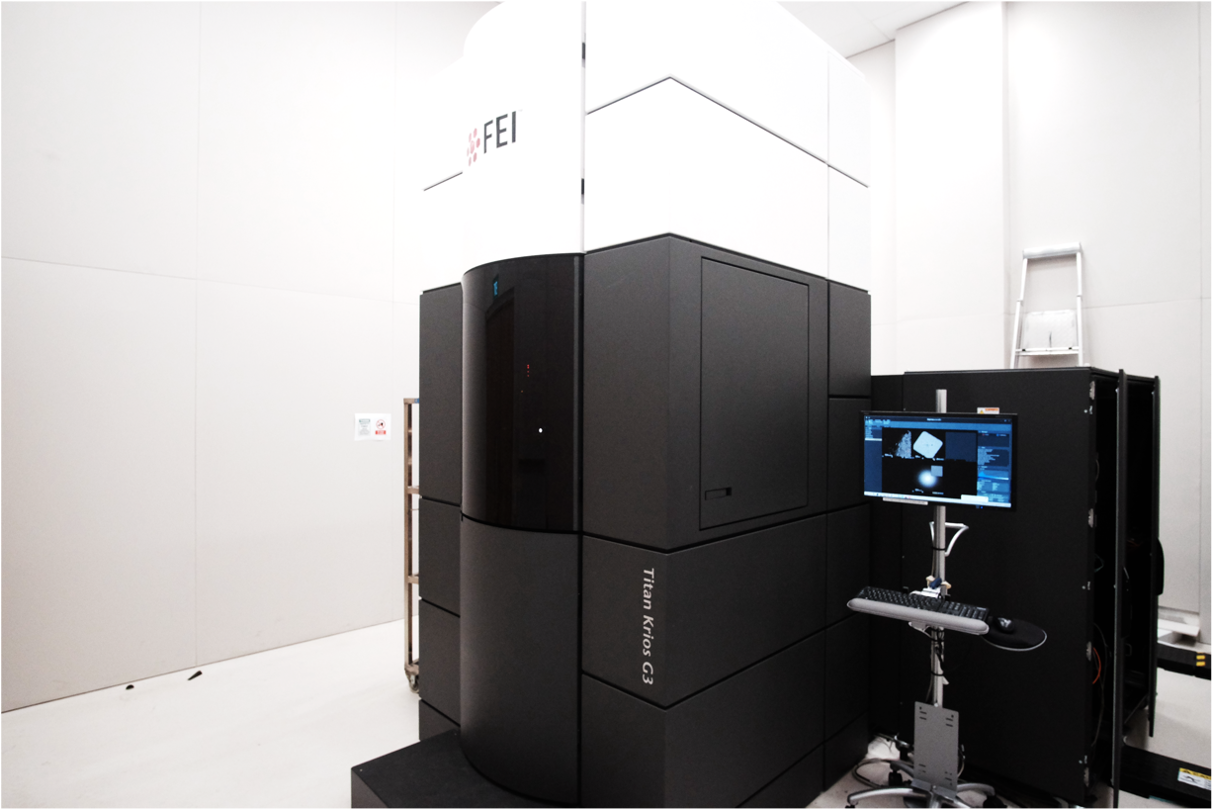

Titan Krios - 300kV Cryo-TEM

High-end 300 keV cryo-EM capable to achieve highest sub-2 Å resolution, load 12 sample at a time and capable to collect 200-500 times more images in a day with direct electron detectors

If you are interested in using the equipment or require assistance and training, please kindly contact Dr. Liew Chong Wai.

High-end 300 keV cryo-transmission electron microscope (TEM) capable of achieving highest (sub-2 Å resolution) of biological samples. Having equipped with two direct electron detectors, an energy filter and one STEM detector, volta phase plate and an 12-cartridge autoloader system, it is one of the best high end microscope for biological samples.  With the latest upgrade (AFIS+FFI) it can collect 200-500 times more images in a day compared to its non-upgraded version.

Titan Krios

  • High brightness field emission gun (X-FEG)
  • Automated 12-cartridge sample loader
  • Volta Phase Plate
  • Symmetric C-Twin objective lens
  • Scanning Transmission Electron Microscopy (STEM) capability
  • Gatan Image Filter (GIF) Bioquantum
  • HAADF, BF/DF detectors
  • Detectors:
    • Falcon 3EC direct electron detector (4K x 4K pixels)
    • Gatan K2 direct electron detector (4K x 4K pixels)
    • Ceta camera
