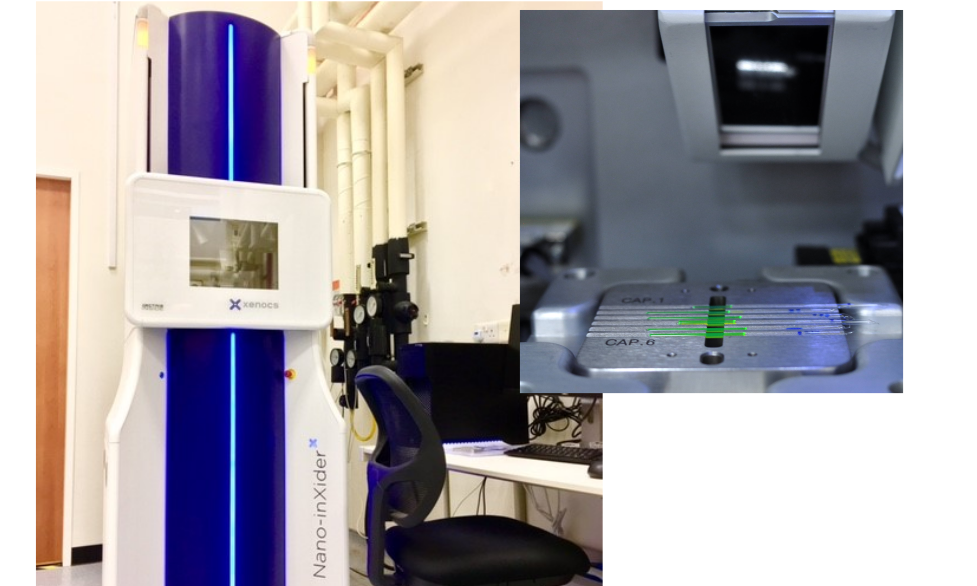

SWAXS Xenocs Nanoinxider
FACTS XRD room at N4.1 B4-10
Small Angle X-ray Scattering (SAXS) , Wide Angle X-ray Scattering (WAXS)
GISAXS/GIWAXS
A dedicated facility for simultaneous SAXS and WAXS experiment in transmission and reflection mode.
Cu-Kα, microsource (40 mm), 30W
Beam diameter: 200 to 800 mm
Beam path in vacuum (0.1 mbar)
SAXS (200K) and WAXS (100K) detectors
Data reduction using FOXTROT
Stages:
Multi-sample holder
Low noise flow cell
Linkam heating-cooling stage (-100 C to 350 C)
Thin film GISAXS/GIWAXS
Beam diameter: 200 to 800 mm
Beam path in vacuum (0.1 mbar)
SAXS (200K) and WAXS (100K) detectors
Data reduction using FOXTROT
Stages:
Multi-sample holder
Low noise flow cell
Linkam heating-cooling stage (-100 C to 350 C)
Thin film GISAXS/GIWAXS
- Particle size analysis (~150 nm maximum size)
- Particle solution scattering
- Structure determination at the meso-scale
- GISAXS, GIWAXS
- In-situ structural change characterisation
