CEE Research Conversations: Knitting Strength into 3D-Printed Concrete
Summary
- A 3D printing approach by Assistant Professor Zhou Wen at NTU’s School of Civil and Environmental Engineering (CEE) and her team could enable safer, more resilient concrete, reducing the need for labour-intensive steel reinforcement.
- Concrete stitching is where concrete layers are interlocked in an interwoven pattern during the 3D printing process. Instead of traditional 3D-printed concrete where layers are stacked on top of each other, the layers are stitched together during printing.
- The result is a material significantly tougher than conventional 3D-printed concrete. The stitched design significantly improved the performance of the printed concrete in the weakest direction – the toughness of the design increased by over 340%.
Safer, more resilient concrete could be enabled by a 3D printing approach by Assistant Professor Zhou Wen at NTU’s School of Civil and Environmental Engineering (CEE) and her team. This potentially reduces the need for heavy steel reinforcement that is labour-intensive to install.
Drawing inspiration from the interwoven structure of a knitted sweater, an unexpected connection, the team introduced a printing strategy called concrete stitching, where concrete layers are intentionally interlocked in an interwoven pattern.
Instead of sitting on top of each other, the layers are stitched together during printing. The result is a material that is significantly tougher than conventional 3D-printed concrete.

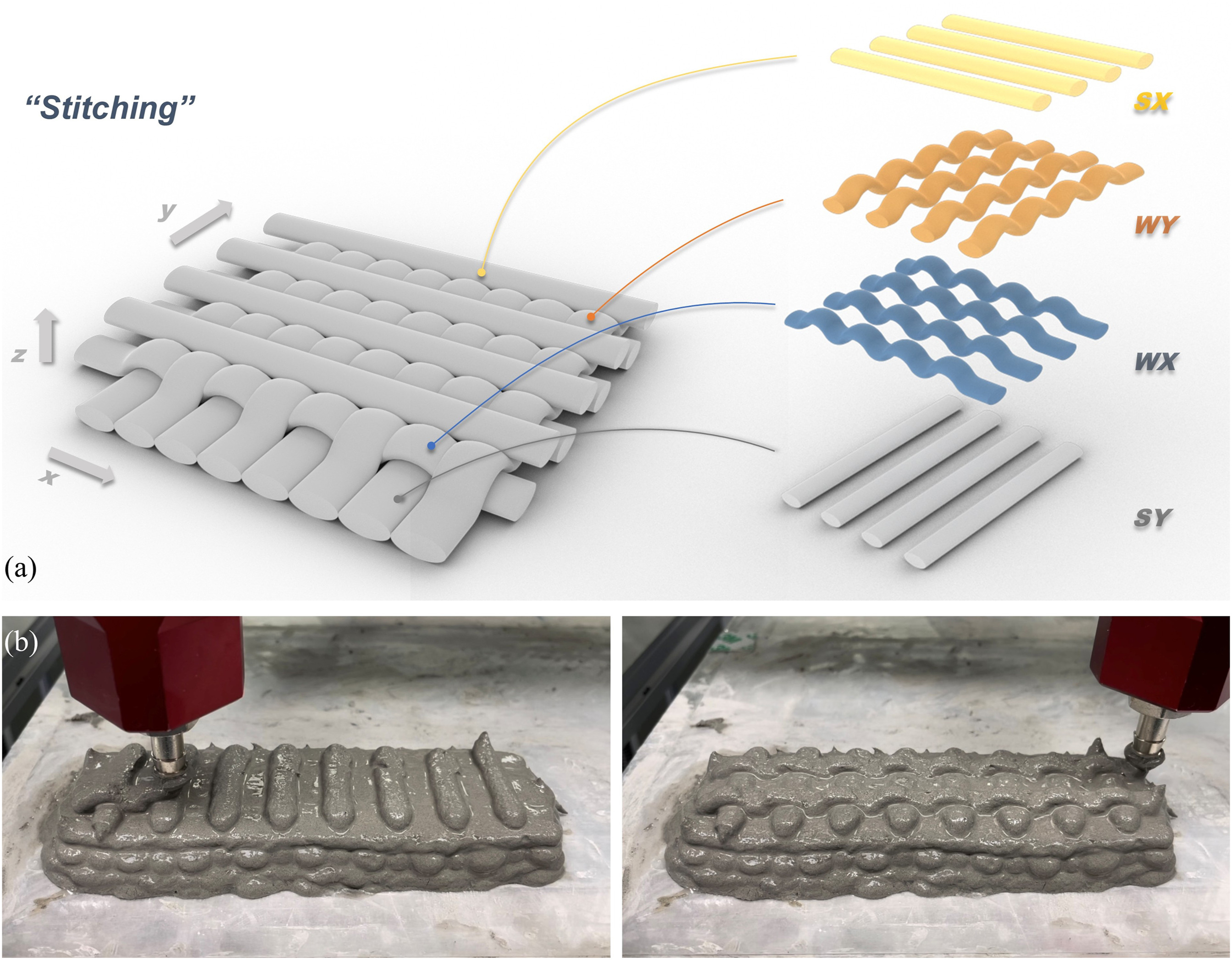

Visual representation of the stitching pattern and printing process of a prototype
Their findings, published in the journal Cement and Concrete Composites, offer a new pathway for next-generation construction, where design, construction, and structural performance are closely integrated.
Understanding the challenge
Traditional 3D-printed concrete structures are built by stacking flat layers of material to create a structure, but the horizontal interfaces between the flat layers are weak.
This is due to a property known as anisotropy – the material is typically strong along the printed layers but weak and brittle between the layers. These concrete layers can separate along these natural planes of weakness, making the structures more vulnerable to forces such as wind and earthquakes if not properly reinforced.
Enhancing strength through design
To address this, the team tested concrete samples using the traditional layer stacking and stitching patterns.
Results showed that the stitched design significantly improved the performance of the printed concrete in the weakest direction - the toughness of the design increased by over 340%.
The structure also exhibited a more ductile behaviour where it could absorb energy better, which was not previously observed in traditional 3D-printed concrete. By enhancing the design, 3D-printed concrete could achieve the ductility needed for structural applications.
While cracks formed through the stitching process are often seen as a sign of damage, they can be a design advantage, enhancing the toughness and resilience of 3D-printed concrete.
Instead of attempting to eliminate cracks entirely, they are guided along predefined stitched paths. This enables a more controlled energy dissipation through distributed micro-cracks, protecting the structure from sudden and catastrophic collapses.
“Instead of fearing the weak joints in 3D printing, we treated them as a resource, an opportunity for design. If you can understand the physics of a failure, you can engineer a way to weave it into a strength,” said Assistant Professor Zhou.

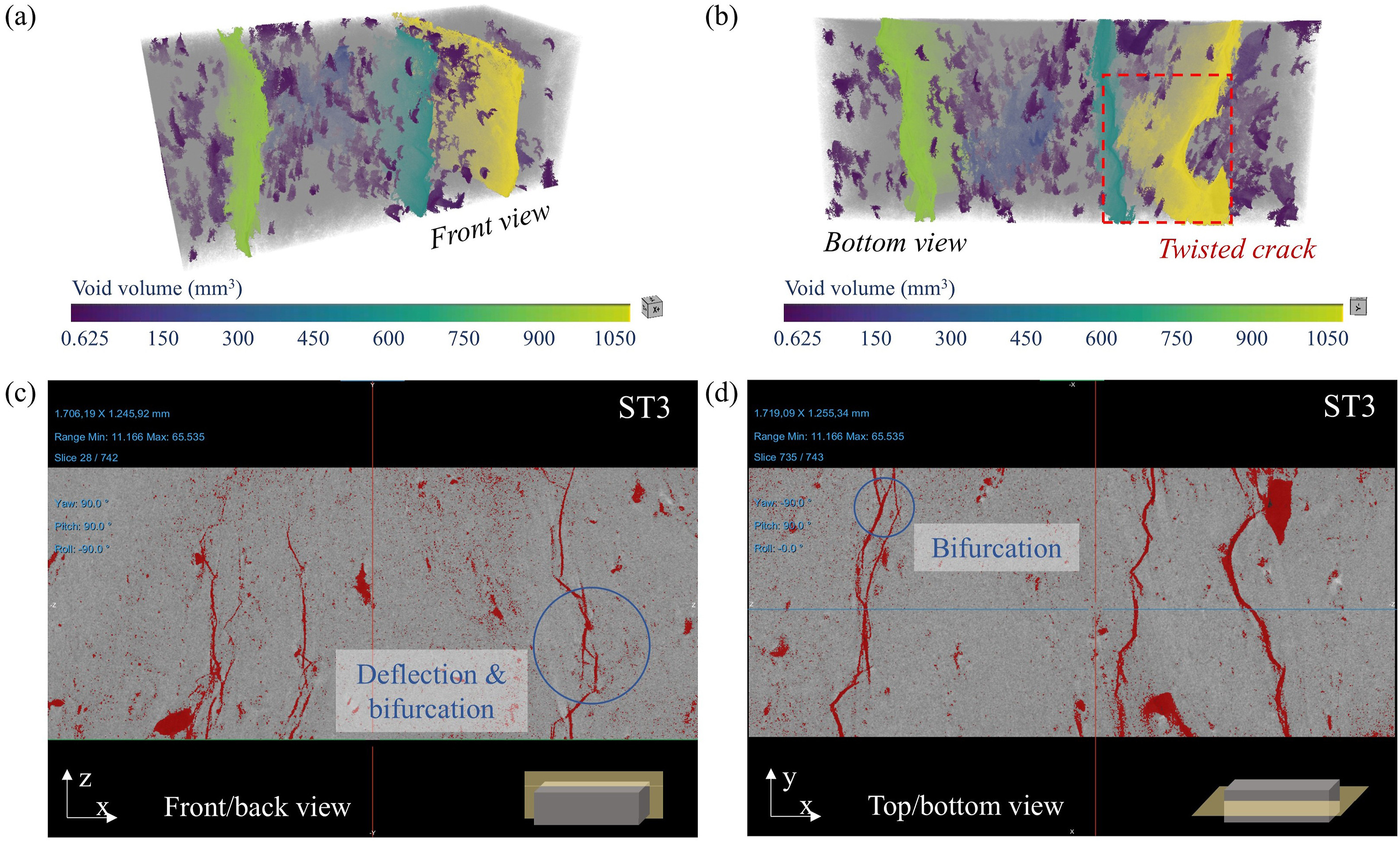

Reconstructed micro-CT images of stitching samples with the red regions representing cracks
Moving towards real-world applications
Future research will focus on optimising stitching patterns and scaling this approach beyond laboratory samples to larger elements. This approach could enable the development of structurally efficient and digitally fabricated components used for real-world applications.
